OMRON - Composants de sécurité - Barrières immatérielles F3S-TGR - F3S-TGR-CL2B-035-750

Name: Barrières immatérielles F3S-TGR F3S-TGR-CL2B-035-750
Brand: OMRON
SKU: 72,258
Price: 1353.86 EUR
Availability: InStock
Rating: 4 (12 reviews)

Livraison gratuite

Reference : F3S-TGR-CL2B-035-750

Marque : OMRON

Prix unitaire

Prix HT

1 353,86 €

Prix TTC

1 624,63 €
Quantité

Prix unitaire HT

10

1 218,47€

50

1 083,084€

100

1 015,392€
Quantité minimale : 1
Quantité :

Description

Documentation

signal_towers_series_brochure_en.pdf f3s-tgr-cl_brochure_fr.pdf y207_machine_safety_catalogue_fr.pdf f07e_f3s-tgr-cl_finger_and_hand_protection_safety_sensor_datasheet_en.pdf f05e_f3s-tgr-cl_operation_manual_fr.pdf

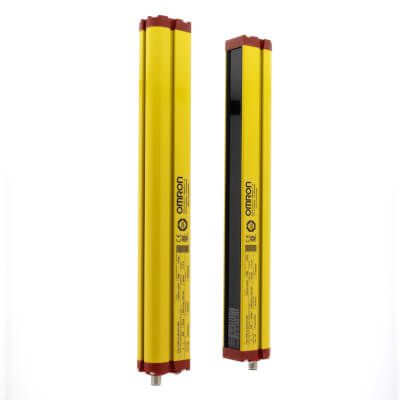

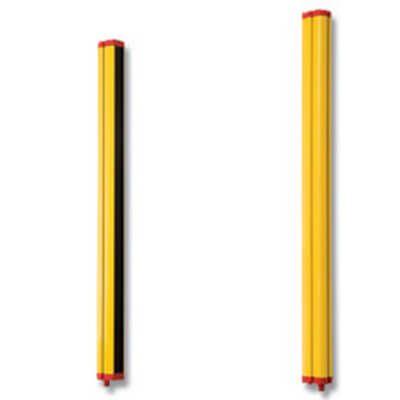

Barrière immatérielle, gamme standard catégorie 2, plc rés. 35, haut. 735mm, portée 0,2-14m type standard, version 'basic'

Cascadable
Degree of protection (IP)	IP65
Minimum operating distance	0.2 m
With muting function
Voltage type	DC
Number of semiconductor outputs with signalling function	0
Maximum safety range	14 m
Width sensor	37 mm
Detection capability	35 mm
Ambient temperature	-10-55 °C
With beam coding
Type of sensor	Hand detection
Type of switching output of the OSSD	PNP
Supply voltage DC	19.2-28.8 V
Height of sensor	48 mm
Type of electric connection	Connector M12
Time of reaction	14 ms
Type of safety acc. IEC 61496-1	2
Special function	Cyclic operation, Interlock, Stand-alone
Scope of delivery	Transmitter and receiver
Overall length	805 mm
Suitable for safety functions
Safety field height	770 mm
Number of protected semiconductor outputs	2
Wavelength of the sensor	880 nm
Beam gap	35 mm
Max. output current at protected output	250 mA
