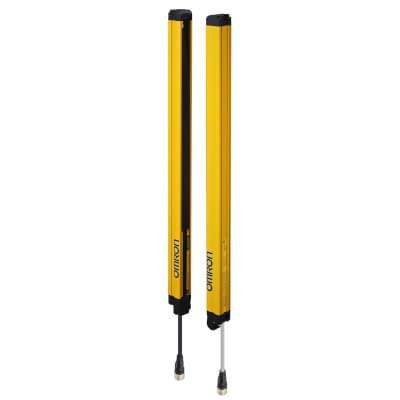

OMRON - Composants de sécurité - Barrières immatérielles F3SG -R - F3SG-4RA1040-14
Livraison gratuite
Reference : F3SG-4RA1040-14
Marque : OMRON
Prix unitaire
- Prix HT
3 033,47 €
Prix TTC3 640,16 € - QuantitéPrix unitaire HT102 730,123€502 426,776€1002 275,103€
-
Quantité minimale : 1
-
Quantité :
-
Description
Barrière immatérielle gamme robuste f3sg - version advanced - type 4 - résolution 14 mm - hauteur protégée 1040 mm - portée opérationnelle 10 m - ip67 - ce, ul/csa, gb, tüv
| Cascadable | |
| Degree of protection (IP) | IP67 |
| Minimum operating distance | 0.3 m |
| With muting function | |
| Voltage type | DC |
| Number of semiconductor outputs with signalling function | 1 |
| Maximum safety range | 10 m |
| Communication port(s) | USB |
| Width sensor | 35 mm |
| Detection capability | 14 mm |
| Ambient temperature | -10-55 °C |
| With beam coding | |
| Type of sensor | Finger detection |
| Type of switching output of the OSSD | PNP/NPN |
| Supply voltage DC | 19.2-28.8 V |
| Height of sensor | 35 mm |
| Type of electric connection | Connector M12 |
| Time of reaction | 13 ms |
| Type of safety acc. IEC 61496-1 | 4 |
| Scope of delivery | Transmitter and receiver |
| Overall length | 1088 mm |
| Suitable for safety functions | |
| Safety field height | 1040 mm |
| Number of protected semiconductor outputs | 2 |
| Wavelength of the sensor | 870 nm |
| Beam gap | 10 mm |
| Max. output current at protected output | 300 mA |
| Number of beams | 103 |
