EGE Elektronik - Contrôleurs de débit - P11372 - SDN 503/1 GSP-DYN
Livraison gratuite
Reference : SDN 503/1 GSP-DYN
Marque : EGE Elektronik
Prix unitaire
- Prix HT
634.83 €
Prix TTC761.80 € - QuantitéPrix unitaire HT3615.785€5603.089€
-
Quantité minimale : 1
- Quantité :
-
Description

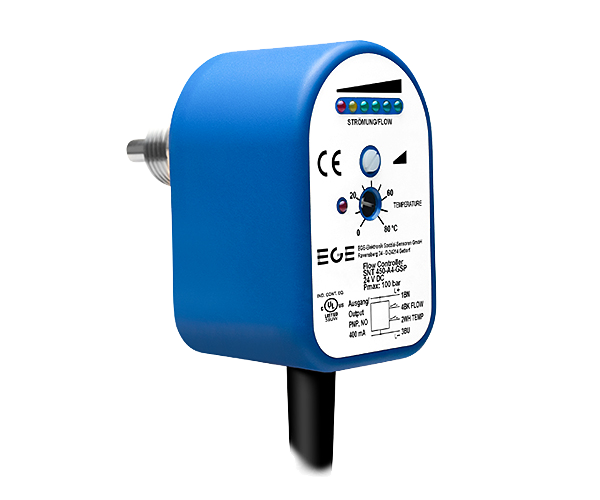

Flow rate sensor with amplifier Robust, compact housing from glass fibre reinforced PBT For the detection of micro flow pulses
| Product ID | P11372 |
| Accessories (in scope of delivery) | 4 x gasket G1/4 AFM 34, Screwdriver |
| Protection [EN 60529] | IP 67 |
| Material housing | stainless steel AISI 303, brass, PBT, PA |
| Compressive strength | 20 bar |
| Sensor length L | 68 mm |
| Medium temperature | -20 ... 80 °C |
| Electrical connection | M12 connector |
| Material sensor touched by medium | stainless steel AISI 316 Ti |
| Accessories | connecting cable SLG, SLW, SBG, SBW, mounting bracket |
| Reverse polarity protection | ✓ |
| Reaction time typ. | 0.1 |
| Ambient temperature | 0 ... 60 °C |
| Process connection | G1/4 |
| Output | switching output |
| Detection range water ml/100ms min. | 0.02 ml/100ms |
| TYPE | SDN 503/1 GSP-DYN |
| Switching current max. | 200 mA (20 °C) |
| Output function | PNP-NO |
| Voltage drop max. | 2.5 V |
| Inner diameter d | 3.6 mm |
| Turn off delay | 0,5...10 s adjustable |
| Current consumption max. | 50 mA |
| Supply voltage | 24 VDC +/- 20 % |
| Medium | Water, oil |
| Working range water min. | 0.04 ml/100ms |
| Start-up time typ. | 15 |
