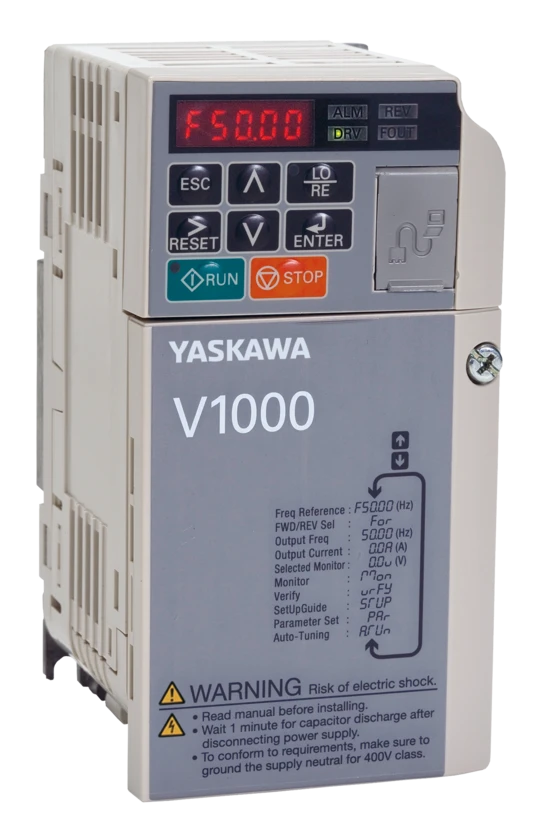

Yaskawa - Variateurs de vitesse - Série V1000 - CIMR-VC4A0011BAA

V1000 Series - CIMR-VC4A0011BAA - Compact AC Drive - Variateur de fréquences

• NPUT POWER SUPPLY : 400 V
• RATED OUTPUT CURRENT (HD) : 9.2 A
• RATED OUTPUT CURRENT (ND) : 11.1 A
• OVERLOAD TOLERANCE (ND): 120% for 60 s
• OVERLOAD TOLERANCE (HD) : 150% for 60 s
• MAX. APPLICABLE MOTOR POWER (HD) : 4 kW
• MAX. APPLICABLE MOTOR POWER (ND): 5.5 kW
• INPUT POWER PHASES: 3-phases
• MOTOR TYPE : Permanent magnet motor, Induction motor
• STANDARDS COMPLIANCE : cUL, CE, RoHS, UL, UKCA
• AMBIENT TEMPERATURE (MIN): -10 °C
• AMBIENT TEMPERATURE (MAX): 50 °C
• MAX. HUMIDITY (NON-CONDENSING): 95 %
• MAX. ALTITUDE (WITHOUT DERATING): 1,000 m
• MAX. ALTITUDE (WITH DERATING): 3,000 m
• HEIGHT: 128 mm
• WIDTH: 140 mm
• DEPTH :143 mm
• WEIGHT: 2.4 kg
• COOLING METHOD: Coldplate, Air cooling
• ENCLOSURE: IP20/UL Open Type
• ANALOG INPUT : 2
• ANALOG OUTPUT : 1
• DIGITAL INPUT: 6
• DIGITAL OUTPUT: 3
• SAFETY LEVEL: SIL2
• PERFORMANCE LEVEL: PL d
• BRAKING TRANSISTOR External
• MOTOR THERMAL PROTECTION : Standard
• MAX OUTPUT FREQUENCY: 400 Hz



*****Equivalent à la référence OMRON : VZA44P0BAA*****
