OMRON - Composants de sécurité - Barrières immatérielles F3S-TGR - F3S-TGR-CL2B-014-150

Name: Barrières immatérielles F3S-TGR F3S-TGR-CL2B-014-150
Brand: OMRON
SKU: 72,108
Price: 635.25 EUR
Availability: InStock
Rating: 4 (12 reviews)

Livraison gratuite

Reference : F3S-TGR-CL2B-014-150

Marque : OMRON

Prix unitaire

Prix HT

635,25 €

Prix TTC

762,30 €
Quantité

Prix unitaire HT

3

616,192€

5

603,487€
Quantité minimale : 1
Quantité :

Description

Documentation

signal_towers_series_brochure_en.pdf f3s-tgr-cl_brochure_fr.pdf y207_machine_safety_catalogue_fr.pdf f07e_f3s-tgr-cl_finger_and_hand_protection_safety_sensor_datasheet_en.pdf f05e_f3s-tgr-cl_operation_manual_fr.pdf

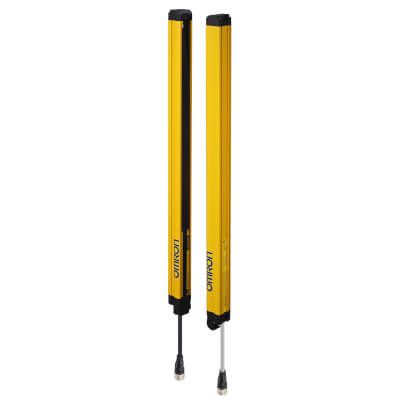

Barrière immatérielle, gamme standard catégorie 2, plc rés. 14, haut. 147mm, portée 0,2-6m type standard, version 'basic'

Cascadable
Degree of protection (IP)	IP65
Minimum operating distance	0.2 m
With muting function
Voltage type	DC
Number of semiconductor outputs with signalling function	0
Maximum safety range	6 m
Width sensor	37 mm
Detection capability	14 mm
Ambient temperature	-10-55 °C
With beam coding
Type of sensor	Finger detection
Type of switching output of the OSSD	PNP
Supply voltage DC	19.2-28.8 V
Height of sensor	48 mm
Type of electric connection	Connector M12
Time of reaction	14 ms
Type of safety acc. IEC 61496-1	2
Special function	Cyclic operation, Interlock, Stand-alone
Scope of delivery	Transmitter and receiver
Overall length	217 mm
Suitable for safety functions
Safety field height	161 mm
Number of protected semiconductor outputs	2
Wavelength of the sensor	880 nm
Beam gap	14 mm
Max. output current at protected output	250 mA
