OMRON - Composants de sécurité - Barrières immatérielles F3S-TGR - F3S-TGR-CL4A-K3C-800

Name: Barrières immatérielles F3S-TGR F3S-TGR-CL4A-K3C-800
Brand: OMRON
SKU: 72,174
Price: 1074.21 EUR
Availability: InStock
Rating: 4 (12 reviews)

Livraison gratuite

Reference : F3S-TGR-CL4A-K3C-800

Marque : OMRON

Prix unitaire

Prix HT

1 074,21 €

Prix TTC

1 289,05 €
Quantité

Prix unitaire HT

3

1 041,985€

5

1 020,501€
Quantité minimale : 1
Quantité :

Description

Documentation

signal_towers_series_brochure_en.pdf f3s-tgr-cl_brochure_fr.pdf y207_machine_safety_catalogue_fr.pdf f07e_f3s-tgr-cl_finger_and_hand_protection_safety_sensor_datasheet_en.pdf f05e_f3s-tgr-cl_operation_manual_fr.pdf

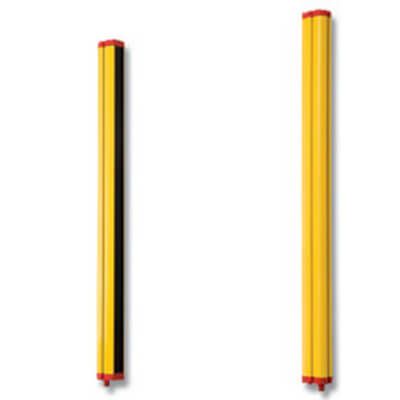

Barrière immatérielle, gamme standard catégorie 4, ple rés. 3 faisceaux, haut. 800mm, portée 0,5-8m type actif + passif, version 'avancé'

Cascadable
Type of switching output of the OSSD	PNP
Degree of protection (IP)	IP65
Minimum operating distance	0.5 m
With muting function
Type of electric connection	Connector M12
Voltage type	DC
Time of reaction	13 ms
Type of safety acc. IEC 61496-1	4
Special function	Active/passive, Blanking, Interlock, Pre-reset
Number of semiconductor outputs with signalling function	0
Scope of delivery	Transmitter and receiver
Maximum safety range	8 m
Detection capability	400 mm
Ambient temperature	-10-55 °C
With beam coding
Number of protected semiconductor outputs	2
Wavelength of the sensor	880 nm
Max. output current at protected output	250 mA
Type of sensor	Body detection
