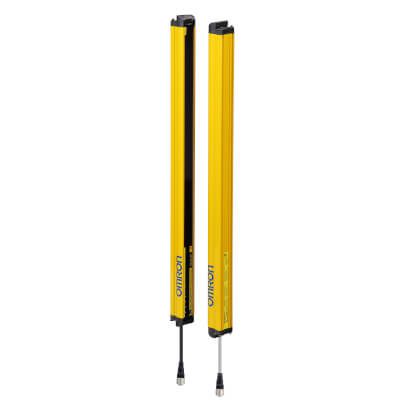

OMRON - Composants de sécurité - Barrières immatérielles F3SG -R - F3SG-4RE1630P30
Livraison gratuite
Reference : F3SG-4RE1630P30
Marque : OMRON
Prix unitaire
- Prix HT
2,328.99 €
Prix TTC2,794.79 € - QuantitéPrix unitaire HT102,096.092€501,863.193€1001,746.744€
-
Quantité minimale : 1
- Quantité :
-
Description
Documentation
signal_towers_series_brochure_en.pdf machine_safety_solution_brochure_fr.pdf f3sg-r_brochure_fr.pdf y207_machine_safety_catalogue_fr.pdf f094_f3sg-r_series_safety_light_curtain_datasheet_en.pdf f39-ptg_instruction_sheet_en.pdf z03e_f3sg-_re_installation_manual_en.pdf 8100375_f39-lp_lamp_for_f3sg_series_instruction_sheet_en.pdf z352_f3sg-_r_users_manual_en.pdf 8100408_f3sg-r_safety_precaution_instruction_sheet_fr.pdf Barrière immatérielle gamme robuste f3sg - version easy - type 4 - résolution 30 mm - hauteur protégée 1630 mm - portée opérationnelle 20 m - ip67 - ce, ul/csa, gb, tüv
| Cascadable | |
| Degree of protection (IP) | IP67 |
| Minimum operating distance | 0.3 m |
| With muting function | |
| Voltage type | DC |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Width sensor | 35 mm |
| Detection capability | 30 mm |
| Ambient temperature | -10-55 °C |
| With beam coding | |
| Type of sensor | Hand detection |
| Type of switching output of the OSSD | PNP |
| Supply voltage DC | 19.2-28.8 V |
| Height of sensor | 35 mm |
| Type of electric connection | Connector M12 |
| Time of reaction | 9 ms |
| Type of safety acc. IEC 61496-1 | 4 |
| Special function | Fast response (ON/OFF applications), Simple wiring |
| Scope of delivery | Transmitter and receiver |
| Overall length | 1630 mm |
| Suitable for safety functions | |
| Safety field height | 1630 mm |
| Number of protected semiconductor outputs | 2 |
| Wavelength of the sensor | 870 nm |
| Beam gap | 20 mm |
| Max. output current at protected output | 300 mA |
| Number of beams | 80 |
