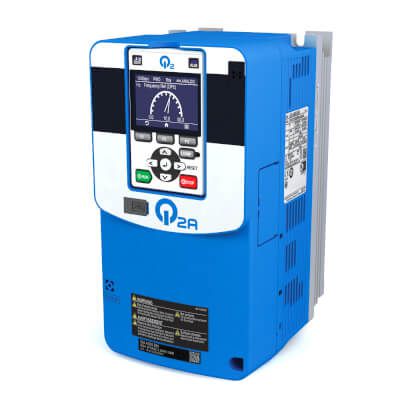

OMRON - Variateurs de vitesse - Variateurs de vitesse Q2A - Q2A-A4371-AAA
Livraison gratuite
Reference : Q2A-A4371-AAA
Marque : OMRON
Prix unitaire
- Prix HT
22 614,90 €
Prix TTC27 137,88 € - QuantitéPrix unitaire HT1020 353,41€5018 091,92€10016 961,175€
-
Quantité minimale : 1
-
Quantité :
-
Description
Variateur Q2A, 400 v, nd: 371 a / 185 kw, hd: 304 a / 160 kw, ip20, fréquence de sortie maximale 599hz
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Weight (unpacked) | 122000 g |
| Built in EMC filter | |
| Inverter control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Depth | 472 mm |
| Max. motor output at constant torque (HD) | 160 kW |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Height | 800 mm |
| Max. motor output at variable torque (ND) | 200 kW |
| Width | 440 mm |
| Finless type |
