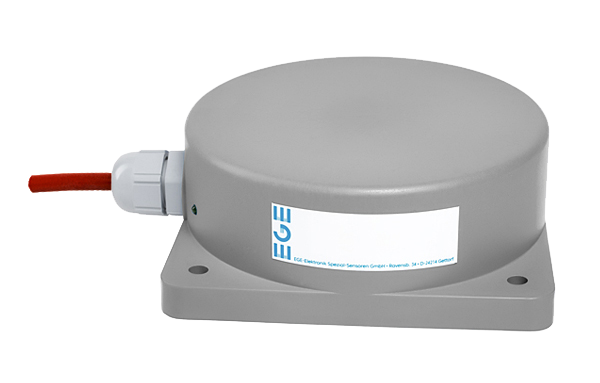

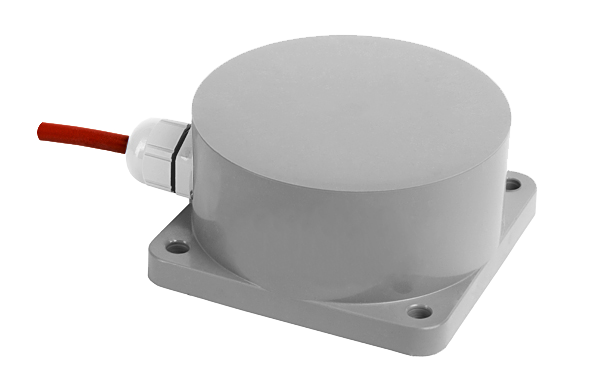

EGE Elektronik - Détecteurs de proximité - P31266 - IDS 080 WP
Reference : IDS 080 WP
Marque : EGE Elektronik
Prix unitaire
- Prix HT
218.45 €
Prix TTC262.14 € - QuantitéPrix unitaire HT3211.896€5207.527€
-
Quantité minimale : 1
- Quantité :
-
Description
ID for heightened requirements and increased switching distances Inductive proximity switches with high switching distances and simultaneously excellent resistance to electromagnetic interference Stable switching behaviour Safe detection even of large moving metal parts, such as pipes or steel plates For use in steel production or metal processing To detected large workpieces
| Product ID | P31266 |
| Switching current max. | 400 mA |
| Adjustment range | 25 ... 80 mm |
| Protection [EN 60529] | IP 67 |
| Voltage drop max. | 6 V |
| Minimum load current | 8 mA |
| Material housing | PBT |
| Current consumption max. | 2.5 mA |
| Operating Distance sn | 55 mm non-flush |
| Supply voltage | 20...250 VAC |
| Switching frequency | 10 Hz |
| Ambient temperature | -25 ... 75 °C |
| Output | switching output |
| EMC-class | A |
| TYPE | IDS 080 WP |
| Display | ✓ |
