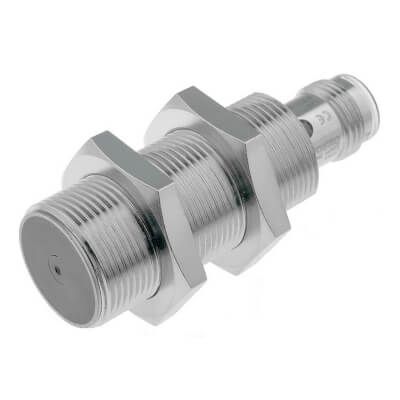

EGE Elektronik - Détecteurs de proximité - P31110 - IGM 105 GSP
Reference : IGM 105 GSP
Marque : EGE Elektronik
Prix unitaire
- Prix HT
79.41 €
Prix TTC95.29 € -
Quantité minimale : 1
- Quantité :
-
Description
Inductive proximity switches resistant against electromagnetic interference which might arise from cables or radiation. For use in systems with challenging EMC conditions Customer-specific adaptations For the detection of metallic objects, presence detection, Position and movement monitoring, Object counting and Speed control on conveyor belts
| Material cap | PPO |
| Product ID | P31110 |
| Switching current max. | 200 mA |
| Output function | PNP-NO |
| Overcurrent release | 250 mA |
| Protection [EN 60529] | IP 67 |
| Voltage drop max. | 1.5 V |
| Material housing | brass-Ni, PPO |
| Material thread | Br-Ni |
| Thread/sleeve | M18x1 |
| Current consumption max. | 1 mA |
| Short circuit proof | yes |
| Electrical connection | 2 m PVC-cable 3x0.5 mm² |
| Operating Distance sn | 5 mm flush |
| Supply voltage | 10...30 VDC |
| Reverse polarity protection | ✓ |
| Switching frequency | 500 Hz |
| Ambient temperature | -25 ... 70 °C |
| Output | switching output |
| EMC-class | A |
| TYPE | IGM 105 GSP |
| Display | ✓ |
