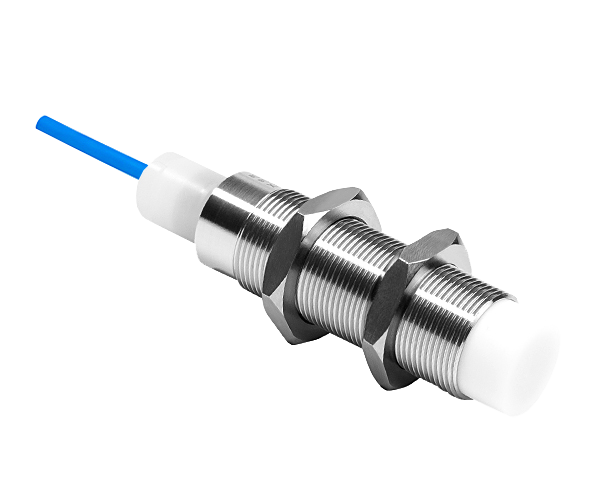

EGE Elektronik - Détecteurs de proximité - P31070 - IGMF 005 WO
Reference : IGMF 005 WO
Marque : EGE Elektronik
Prix unitaire
- Prix HT
219,66 €
Prix TTC263,59 € - QuantitéPrix unitaire HT3213,07€5208,677€
-
Quantité minimale : 1
-
Quantité :
-
Description
Documentation
P31070-IGMF 005 WO For use at temperatures up to 120°C Climatic proofed Water-tight and resistant to high pressure cleaning For use in cleaning processes Detection of baskets, trolleys, objects in washing plant For use in the food processing, steel and paper industries
| Material cap | PTFE |
| Product ID | P31070 |
| Switching current max. | 400 mA |
| Output function | relay NC |
| Protection [EN 60529] | IP 68 + IP 69K |
| Voltage drop max. | 5 V |
| Minimum load current | 5 mA |
| Material housing | stainless steel AISI 316 Ti, stainless steel, PTFE |
| Material thread | stainless steel AISI 316 Ti (A4) |
| Thread/sleeve | M18x1 |
| Current consumption max. | 2.5 mA |
| Electrical connection | 2 m FEP-cable 3x0.75 mm² |
| Operating Distance sn | 5 mm flush |
| Supply voltage | 20...250 VAC |
| Switching frequency | 25 Hz |
| Ambient temperature | -25 ... 120 °C |
| Output | switching output |
| EMC-class | A |
| TYPE | IGMF 005 WO |
