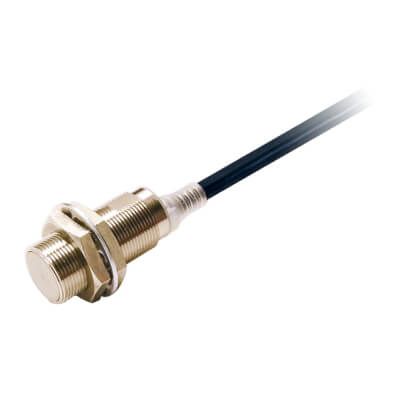

EGE Elektronik - Détecteurs de proximité - P31433 - IGMW 005 GOP
Reference : IGMW 005 GOP
Marque : EGE Elektronik
Prix unitaire
- Prix HT
214.83 €
Prix TTC257.80 € - QuantitéPrix unitaire HT3208.385€5204.089€
-
Quantité minimale : 1
- Quantité :
-
Description
For use at temperatures up to 120°C Climatic proofed Water-tight and resistant to high pressure cleaning Particularly resistant to steam For use in cleaning processes For use in cooking processes
| Material cap | PTFE |
| Product ID | P31433 |
| Output function | PNP-NC |
| Overcurrent release | 230 mA |
| Protection [EN 60529] | IP 68 + IP 69K |
| Voltage drop max. | 2 V |
| Residual current | 1 |
| Material housing | stainless steel AISI 316 Ti, stainless steel, PTFE |
| Material thread | stainless steel AISI 316 Ti (A4) |
| Thread/sleeve | M18x1 |
| Current consumption max. | 4 mA |
| Electrical connection | 2 m FEP-cable 3x0.34 mm² |
| Operating Distance sn | 5 mm flush |
| Supply voltage | 10...30 VDC |
| Switching frequency | 150 Hz |
| Ambient temperature | -25 ... 120 °C |
| EMC-class | A |
| TYPE | IGMW 005 GOP |
