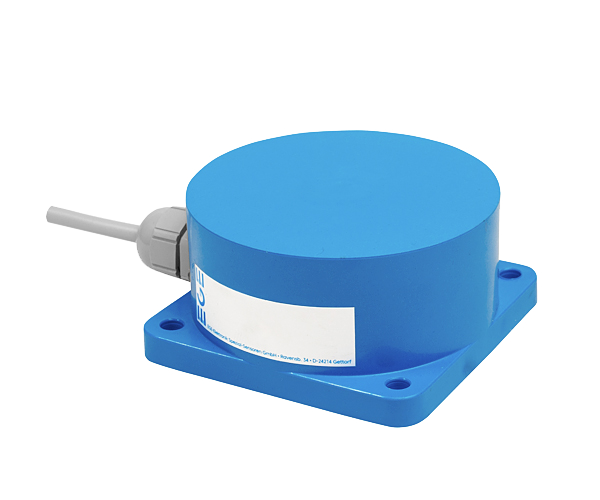

EGE Elektronik - Détecteurs de proximité - P31265 - ID 080 GSOP
Reference : ID 080 GSOP
Marque : EGE Elektronik
Prix unitaire
- Prix HT
168.97 €
Prix TTC202.76 € - QuantitéPrix unitaire HT3163.901€5160.522€
-
Quantité minimale : 1
- Quantité :
-
Description
ID for heightened requirements and increased switching distances Inductive proximity switches with high switching distances and simultaneously excellent resistance to electromagnetic interference Stable switching behaviour Safe detection even of large moving metal parts, such as pipes or steel plates For use in steel production or metal processing To detected large workpieces
| Product ID | P31265 |
| Switching current max. | 400 mA |
| Adjustment range | 25 ... 80 mm |
| Protection [EN 60529] | IP 67 |
| Voltage drop max. | 2 V |
| Material housing | PBT |
| Current consumption max. | 4 mA |
| Short circuit proof | yes |
| Operating Distance sn | 55 mm non-flush |
| Supply voltage | 10...55 VDC |
| Reverse polarity protection | ✓ |
| Switching frequency | 20 Hz |
| Ambient temperature | -25 ... 75 °C |
| Output | switching output |
| EMC-class | A |
| TYPE | ID 080 GSOP |
| Display | ✓ |
