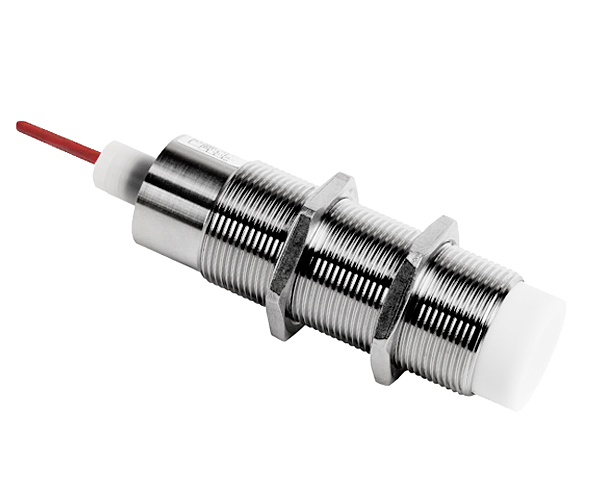

EGE Elektronik - Détecteurs de proximité - P30638 - IGFW 015 WS
Reference : IGFW 015 WS
Marque : EGE Elektronik
Prix unitaire
- Prix HT
199,14 €
Prix TTC238,97 € - QuantitéPrix unitaire HT3193,166€5189,183€
-
Quantité minimale : 1
-
Quantité :
-
Description
Documentation
P30638-IGFW 015 WS For use in wet and warm processes and aggressive fluids Resistant to roller oil For use at temperatures up to 120°C Climatic proofed For use in environments with heavily seeping oil For use in the steel industry
| Material cap | PTFE |
| Product ID | P30638 |
| Switching current max. | 400 mA |
| Output function | relay |
| Protection [EN 60529] | IP 68 + IP 69K |
| Voltage drop max. | 5 V |
| Minimum load current | 5 mA |
| Material housing | PTFE |
| Material thread | PTFE |
| Thread/sleeve | M30x1,5 |
| Current consumption max. | 2.5 mA |
| Electrical connection | 2 m silicone-cable 2x0.75 mm² |
| Operating Distance sn | 14 mm non-flush |
| Temperature deviation (25...70°C) | 10 % |
| Supply voltage | 20...250 VAC |
| Temperature deviation (25...120°C) | 20 % |
| Switching frequency | 20 Hz |
| Ambient temperature | -25 ... 120 °C |
| Output | switching output |
| EMC-class | A |
| TYPE | IGFW 015 WS |
